최대 Celeron N5095 프로세서와 함께 제공되는 Jasper Lake Mini PC

최대 Celeron N5095 프로세서와 함께 제공되는 Jasper Lake Mini PC



인텔 은 연초에 공식적으로 Jasper Lake 프로세서 를 출시 했습니다. 새로운 제품군은 지난 몇 년 동안 저가형 저전력 미니 PC에서 발견 된 Gemini Lake 프로세서에 대한 업그레이드를 제공합니다.

몇 달 전에 ASUS PN41 Jasper Lake 미니 PC가 유출되었지만 지금까지 공식적으로 이러한 유형의 컴퓨터를 도입 한 제조업체는 없습니다. 그러나 Newsmay Technology는 이전에 발표 한 6 개의 6W / 10W 셀러론 / 펜티엄 프로세서와 내가 들어 본 적이없는 15W 셀러론 N5095 프로세서를 선택하여 AC8 미니 PC를 홍보하기 시작했습니다.

AC8 미니 PC 사양 :

• Jasper Lake SoC (하나 또는 다른)
  • Intel Celeron N4500 듀얼 코어 프로세서 @ 1.1 / 2.8GHz, UHD 그래픽; 6W TDP
  • Intel Celeron N5100 쿼드 코어 프로세서 @ 1.1 / 2.8GHz, UHD 그래픽; 6W TDP
  • Intel Pentium Silver N6000 쿼드 코어 프로세서 @ 1.1 / 3.1GHz, UHD 그래픽; 6W TDP
  • Intel Celeron N4505 듀얼 코어 프로세서 @ 2.0 / 2.9GHz, UHD 그래픽; 10W TDP
  • Intel Celeron N5105 쿼드 코어 프로세서 @ 2.0 / 2.9GHz, UHD 그래픽; 10W TDP
  • Intel Pentium Silver N6005 쿼드 코어 프로세서 @ 2.0GHz / 3.3GHz, UHD 그래픽; 10W TDP
  • Intel Celeron N5095 쿼드 코어 프로세서 @ 2.0GHz ~ 2.9GHz, UHD 그래픽; 15W TDP
• 시스템 메모리 – 2x SODIMM DDR4 슬롯, 최대 32GB RAM
• 스토리지 – SSD 용 M.2 2280 소켓, MicroSD 카드 슬롯
• 비디오 출력 – 최대 4Kp60의 HDMI 2.0 포트, 최대 4Kp60의 DisplayPort 및 VGA
• 오디오 – 라인 출력 잭, 마이크 입력 잭, HDMI를 통한 디지털 오디오
• 연결성
  • 기가비트 이더넷
  • WiFi 및 / 또는 Bluetooth 용 M.2 PCIe 슬롯
  • 4G 용 SIM 카드 슬롯 (미정, 내부에 있어야 함)
• USB – 4x USB3.0 포트, 2x USB2.0 포트
• 기타 – 전원 버튼
• 전원 공급 장치 – 12V / 2.4A DC 잭
• 크기 – 127 x 127 x 48mm (플라스틱 섀시)

The Jasper Lake mini PC ships with a power adapter, an HDMI cable, and a VESA mount (70×70 or 100x100mm support). The company says AC8 mini PC supports Windows 10, but I don’t see why it would not run Linux distributions unless some drivers are missing. The design is said to be fanless.

Newsmay Technology offers the mini PC to resellers and distributors, and for instance, the AC8-5095 barebone mini PC is sold for $110 per unit for 40+ pieces orders on Globalsources. I’m not quite sure how relevant the price really, as the AC8-6005 model goes for $210 per unit…


www.cnx-software.com/2021/04/27/jasper-lake-mini-pc-offered-with-up-to-celeron-n5095-processor/

Jasper Lake Mini PC offered with up to Celeron N5095 processor - CNX Software



---



Intel Atlas Canyon NUC leaked: Tiny desktop with Intel Jasper Lake (Celeron and Pentium) chips





Intel is developing a new small form-factor desktop computer powered by 10-watt Intel Celeron or Pentium Silver “Jasper Lake” processor options. Code-named “Atlas Canyon,” the new system will be known as the NUC 11 Essential and while Intel hasn’t officially announced the new product yet, FanlessTech has the details from what looks like an official product info slide.

Speaking of fanless technology, the Intel NUC 11 Essentially will be actively cooled. But some third-party vendors have a history of offering aftermarket fanless cases for Intel NUC systems, allowing you to remove the fan for silent operation. That’s even easier to do on low-power models like this.

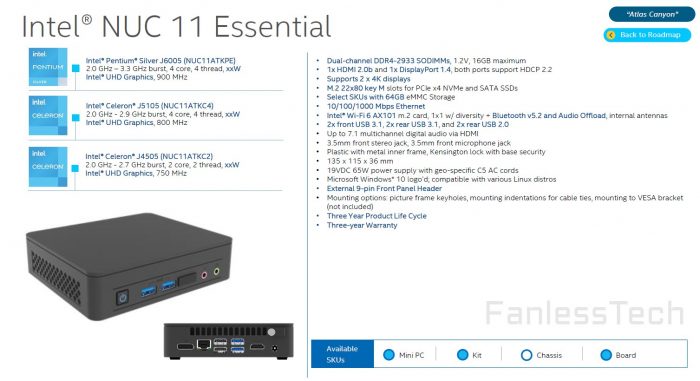

According to the spec sheet, the new system measures about 5.3″ x 4.5″ x 1.4″ and has room inside the case for up to 16GB of DDR4-2933 dual-channel memory and M.2 2280 keys for PCIe x4 NVMe or SATA SSDs. There’s no drive bay for a hard drive with this model, but Intel will offer some models with 64GB of eMMC storage built in.

Ports include:

• 1 x HDMI 2.0b
• 1 x DisplayPort 1.4
• 4 x USB 3.1 Type-A
• 2 x USB 2.0
• 2 x 3.5mm audio (mic and headphone)
• Gigabit Ethernet

The computer also features WiFi 6 and Bluetooth 5.2 and there’s a 9-pin front panel header that could be used to provide configurable port options.

At the heart of the computer will be one of three processor options:

• Intel Pentium Silver J6005 (4-cores/4-thread, 2 GHz base/3.3 GHz boost, 900 MHz Intel UHD graphics)
• Intel Celeron J5105 (4-cores/4-thread, 2 GHz base/2.9 GHz boost, 800 MHz Intel UHD graphics)
• Intel Celeron J4505 (2-cores/2-thread, 2 GHz base/2.7 GHz boost, 750 MHz Intel UHD graphics)

These chips are 10nm processors that feature CPU cores based on Intel’s Tremont architecture, and they’re expected to bring up to a 35-percent performance boost over previous-gen “Gemini Lake Refresh” processors.

Unfortunately the Atlas Canyon NUC isn’t expected to ship until the beginning of 2022. The global chip shortage may be at least partially to blame for that.

In the meantime, you may be able to find mini PCs with Jasper Lake chips from other PC makers. One Chinese company called Newsday Technology has already introduced one.
